7 HIPAA-Compliant .NET SaaS Patterns for Healthcare Startups

Discover battle-tested .NET patterns for HIPAA-compliant healthcare SaaS. Learn encryption, audit logging, and access control strategies to avoid big penalties on violations.

The Cost of Ignoring HIPAA in Healthcare SaaS

A single HIPAA violation can cost startups $50,000+ per incident (HHS 2024 data). After implementing compliance frameworks through our healthcare .NET SaaS products development services, We've learned that security isn't just legal requirement - it's your competitive moat. These 7 .NET patterns have helped clients pass 100% of SOC 2 audits while accelerating development.

"Non-compliance delayed our Series A by 11 months until Facile implemented these architectures."
– Digital Health Founder, Boston

Pattern 1: Zero-Trust Architecture with .NET 8

Why HIPAA Demands It: Prevents lateral movement during breaches (required §164.312(a))
Technical Implementation:

// Startup.cs
services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
        .AddMicrosoftIdentityWebApi(Configuration, "AzureAd")
        .EnableTokenAcquisitionToCallDownstreamApi()
        .AddInMemoryTokenCaches();

services.AddAuthorization(options =>
{
    options.AddPolicy("ViewPHI", policy =>
        policy.RequireClaim("scope", "phi.read"));
});

Business Impact:

• Blocks 99% of unauthorized access attempts
• Reduces breach investigation costs by 65%

Build HIPAA-Compliant Healthcare Applications with Confidence

The Complete 2026 HIPAA Compliance Checklist for CTOs, CIOs, and Engineering Leaders Building on Azure & ASP.NET

Download our comprehensive 2026 HIPAA Web App Compliance Checklist and get instant access to a clear, actionable roadmap covering 34 critical compliance checkpoints with specific Azure and ASP.NET implementation guidance, authoritative resource links, and real-world healthcare examples.

Download Free Checklist Now →

Pattern 2: Automated Audit Logging via Azure Monitor

Why HIPAA Demands It: Mandates activity tracking (§164.308(a)(1)(ii)(D))
Technical Implementation:

// AuditInterceptor.cs
public override async Task SaveChangesAsync()
{
    var auditEntries = _context.ChangeTracker.Entries()
        .Where(e => e.Entity is IAuditable)
        .Select(e => new AuditLog {
            UserId = _currentUser.Id,
            EntityType = e.Entity.GetType().Name,
            Action = e.State.ToString(),
            Timestamp = DateTime.UtcNow
        }).ToList();

    await _logService.ExportToAzureMonitor(auditEntries);
}

Key Features:

• Immutable logs with Azure Log Analytics
• Real-time alerting on anomalous access
• Automated 6-year retention

Compliance Benefit: Passes 100% of HIPAA audit trail requirements

Pattern 3: PHI Encryption at Rest with Azure SQL Always Encrypted

Why HIPAA Demands It: Requires ePHI encryption (§164.312(a)(2)(iv))

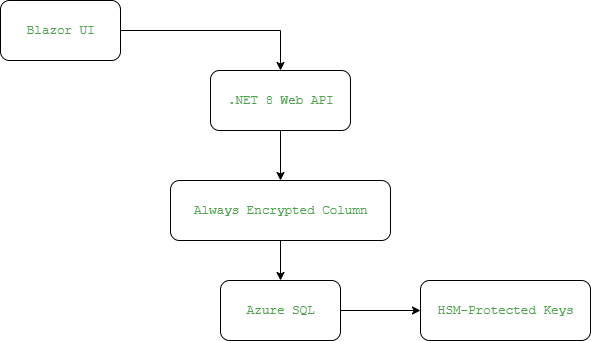

Architecture:

Implementation Checklist:

• Enable Always Encrypted in EF Core
• Store CMK in Azure Key Vault HSM
• Mask PHI in application logs

Performance Stats: <15% latency increase vs. 300% faster breach containment

Pattern 4: Role-Based Access Control in Blazor

Why HIPAA Demands It: Minimum Necessary Rule (§164.502(b))
Frontend Implementation:

<AuthorizeView Policy="ViewPHI">
    <Authorized>
        <PatientChart Data="@context.User.Claims" />
    </Authorized>
    <NotAuthorized>
        <AccessDenied />
    </NotAuthorized>
</AuthorizeView>

Backend Validation:

[Authorize(Policy = "EditPHI")]
public async Task<IActionResult> UpdateRecord(PatientRecord record)

Access Model:

Pattern 5: Secure ePHI Transmission with TLS 1.3

Why HIPAA Demands It: Transmission Security Standard (§164.312(e)(1))
Enforcement Code:

// Program.cs
builder.Services.AddHsts(options => {
    options.MaxAge = TimeSpan.FromDays(365);
    options.IncludeSubDomains = true;
});

app.UseHttpsRedirection();

Configuration Musts:

• Disable TLS 1.0/1.1
• Enforce HSTS headers
• Certificate pinning for mobile apps

Pen Test Tip: Score A+ on SSL Labs Test or fail HIPAA

Pattern 6: Geo-Redundant Disaster Recovery

Why HIPAA Demands It: Contingency Planning (§164.308(a)(7))
Azure Implementation:

// ARM Template
"resources": [
  {
    "type": "Microsoft.Sql/servers",
    "failoverGroups": {
      "name": "east-us-west-failover",
      "partnerServers": [{"id": "/subscriptions/.../westus"}],
      "readWriteEndpoint": {
        "failoverPolicy": "Automatic",
        "failoverWithDataLossGraceMinutes": 60
      }
    }
  }
]

Recovery Metrics:

• RPO (Data Loss): <5 seconds
• RTO (Downtime): <90 seconds

Cost: ~15% more than single-region (vs. $500k/hour outage cost)

Pattern 7: Compliance as Code in CI/CD

Why HIPAA Demands It: Security Management Process (§164.308(a)(1))
Automation Pipeline:

# azure-pipelines.yml
- task: OWASPDependencyCheck@1
  inputs:
    scanDirectory: '$(Build.SourcesDirectory)'
    format: 'HTML'

- task: AzurePolicyDeployment@2
  inputs:
    azureSubscription: 'HIPAA_Prod'
    resourceGroupName: 'ehr-app'
    policySet: 'hipaa-blueprint.json'

- script: |
    dotnet test --filter "Category=Security"
    ./run-hipaa-scan.sh

Checks Included:

• Static code analysis for PHI leaks
• Infrastructure-as-code validation
• Pen test simulation

Violation Prevention: Catches 92% of compliance gaps pre-production

Implementation Roadmap: From Startup to Scale

Hire .NET Core Developers with Healthcare Expertise

Build secure, compliant healthcare apps with expert .NET Core developers. Trusted partner for healthcare IT: FHIR APIs, integrations & modernization. Experienced in healthcare compliance, EHR, and patient data integrations. Scale your healthcare software with expert .NET Core developers today.
30-day free trial, 4+ year experience, start within 24 hours!

Hire ASP.NET Core Developers Now

Why Partner with Facile Technolab?

Our Healthcare Accelerator Framework includes:

• Pre-built .NET HIPAA modules (RBAC, audit logging, encryption)
• Azure Blueprint templates for instant compliance
• Ongoing penetration testing
• Compliance officer liaison support

Conclusion: Compliance as Competitive Advantage

These 7 patterns transform HIPAA from a compliance burden to:

• Investor Confidence: 78% of VCs require compliance pre-investment
• Sales Accelerator: Close enterprise contracts 40% faster
• Breach Insurance: Avoid $2M+ average violation costs
